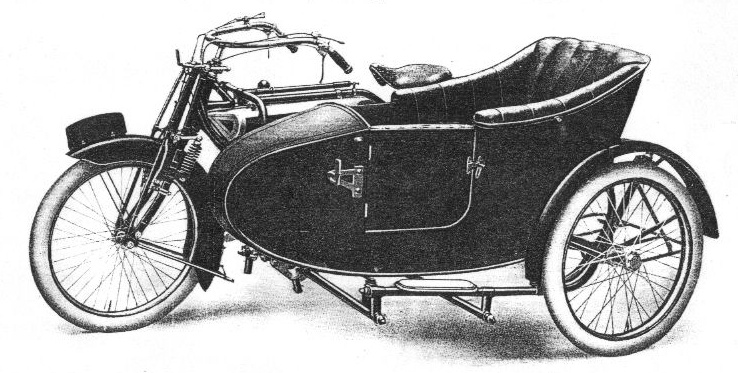

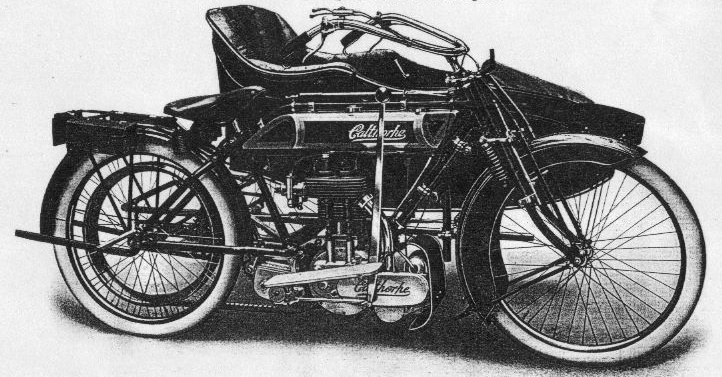

1914 "Calthorpe" 4 ¼ h.p. Model (with sidecar)
Appearance As picture
Specification
Engine - 4 ¼ h.p. single cylinder Precision, 90 mm. bore x 96 mm. stroke having a capacity of 600 c.c., mechanically operated valves.
Carburetter - Improved 1914 senspray.
Ignition - Bosch high tension magneto, chain driven, in water and dust-proof case. Handle bar control.
Tank - Petrol capacity 1 ¼ gallons and 1 quart oil, Best and Loyd sight-feed lubrication, combined patent petrol gauge and strainer, screw filler caps.
Transmission - Calthorpe two-speed counter-shaft gear and free engine. Chain and belt drive, kick-pedal starting.
Frame - Heavy gauge weldless steel tubing, reinforced with spirally-lined patent tube, brazed on Calthorpe patent quick detachable side-car joints, Druid spring forks.
Brakes - Rear acting on belt rim operated by foot pedal, Bowden front brake operated buy inverted lever with patent magneto cut-out before brake shoes come into contact with rim.
Wheels - 26 x 2 ¼, Michelin tyres heavily plated steel rims with black centers and red lines, oil-retaining dust-proof hubs.
Standard Fittings - Front and rear stands, tubular carrier with pannier tool bags, side-splash mudguards on front, pan seat.
Finished with patent anti-rust treatment, enamelled in four coats of lustre enamel, and lined green and gold. The tank aluminium, lined and panelled to match.
Extras
Armstrong three-speed hub.
Art-cane Body built Side-car.
Notes
Additional Information - (Available to members in downloads section)
- 1914 Sales Brochure and parts list.
- Advertisements as published in 1914.
- The Motor Cycle. Nov. 20th 1913 - 1914 Precision Engine article.
Sources
- 1914 Sales Brochure
