1920 2 ¾ h.p. "Calthorpe-Jap"

1920 jap

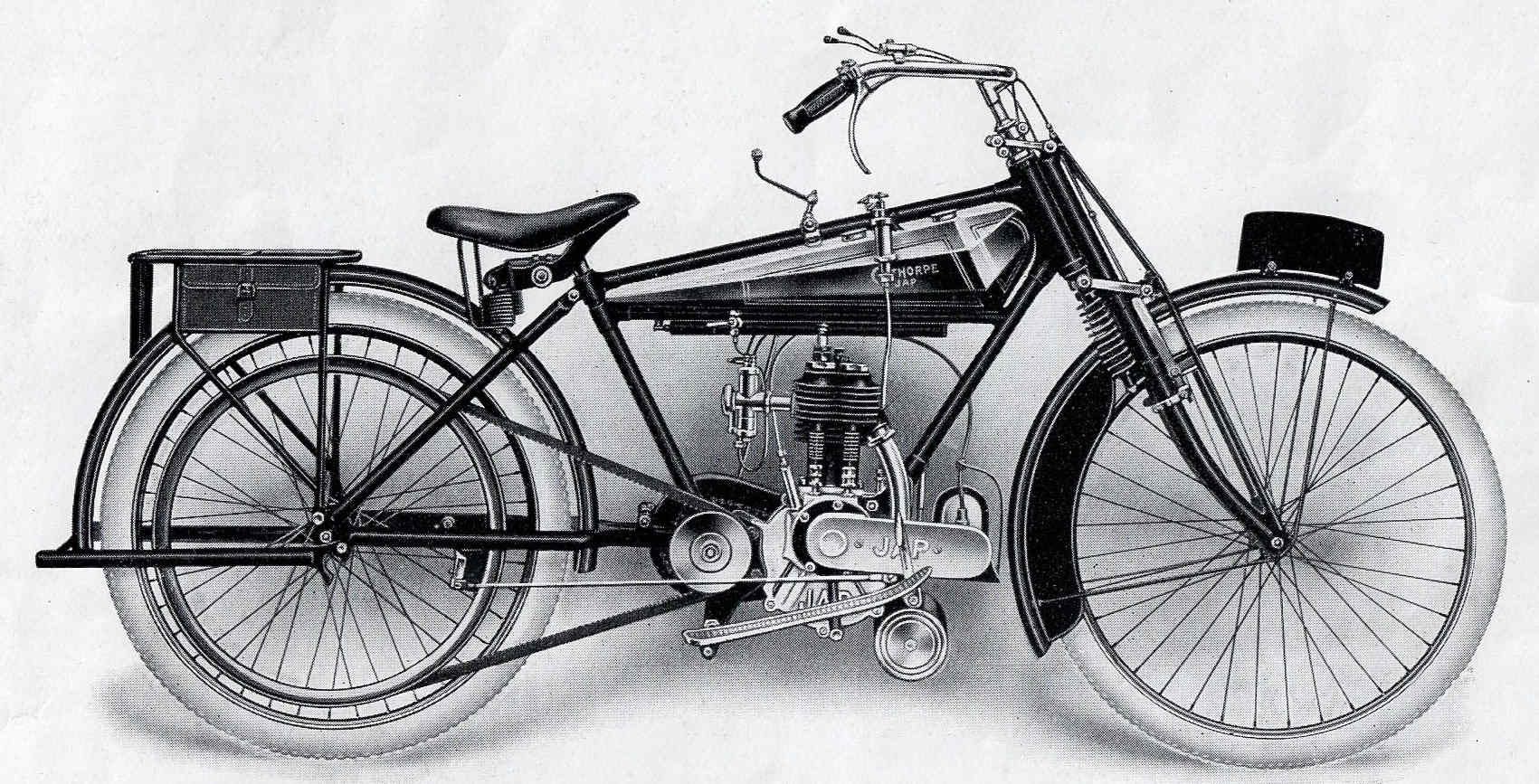

Appearance As picture

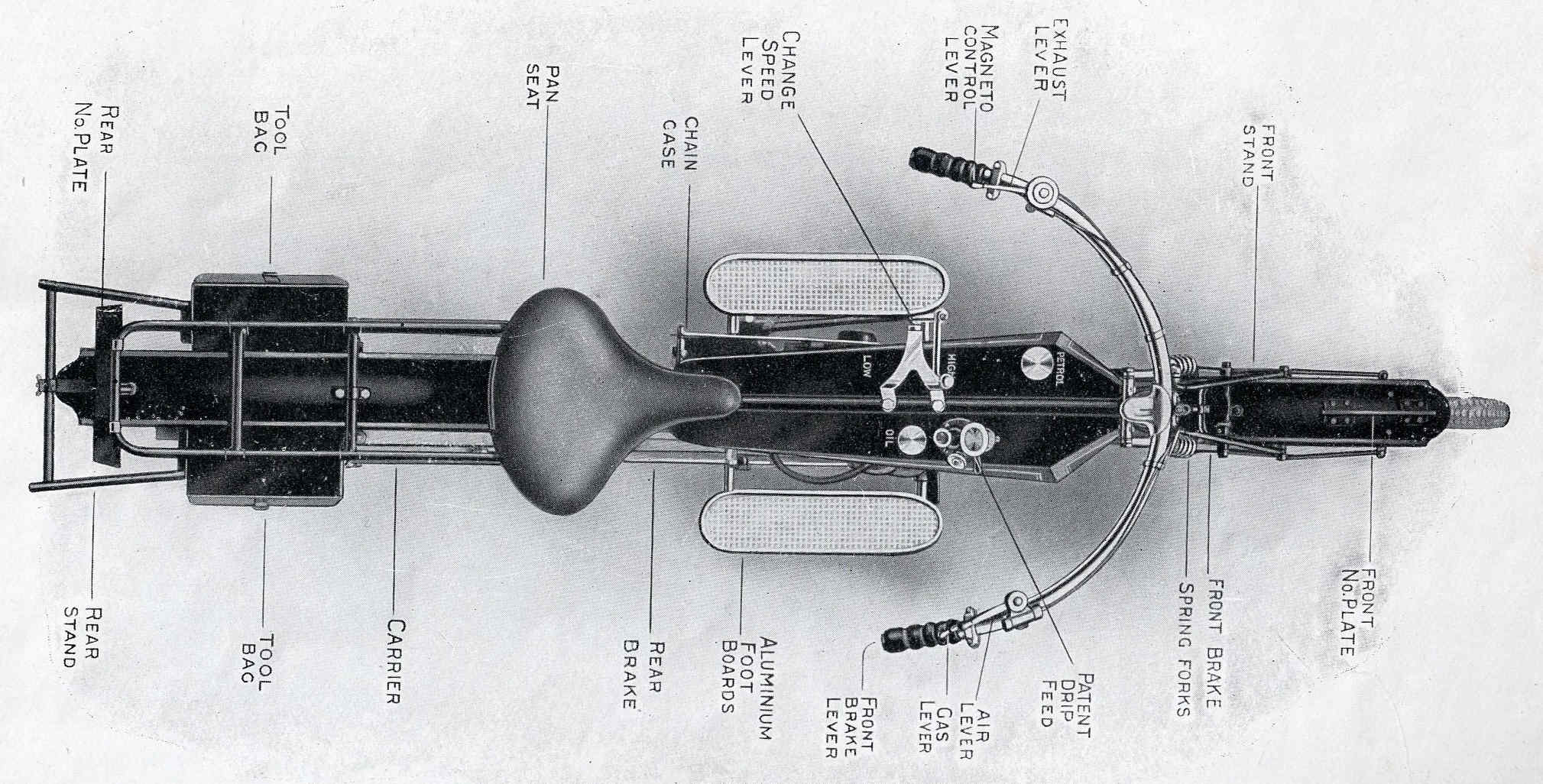

Click here for detailed top view



Specification

Engine - 2 ¾ h.p. Jap, 70 mm. bore x 76 mm. stroke having a capacity of 292 c.c.

Carburetter - Amac.

Ignition - High-tension variable Magneto, handle bar control.

Tank - 1 ¼ gallons petrol, 1 quart oil. Best and Lloyd sight-feed lubrication.

Transmission - Enfield Patent Two-Speed gear and Free-Engine with cush sprocket. Roller chains from engine sprocket to gear. ¾in. Dunlop belt from fixed pulley off two-speed gear to rear belt rim.

Frame - Weldless steel tubing, all vital parts reinforced, Druid girder spring forks.

Brakes - Rear acting on belt rim, operated from foot pedal and powerful Bowden front brake.

Wheels - 26in. x 2in. Dunlop Beaded Edge Studded Tyres, heavily plated steel rims with coloured centres, oil retaining dust and weather proof hubs.

Standard Fittings - Patent Pan seat, Gough or other option, rear stand, carrier, strong wide mudguards, armoured Pannier Bags with tools.

Finished in four coats of lustre enamel and all bright parts heavily plated, tank enamelled in Black and English Gold Leaf lined.



Extras

Notes

Additional Information - (Available to members in downloads section)

  • 1920 Sales Brochure, Enfield gear information and spare parts list.
  • Supplement Spare Part List For Calthorpe Motor Cycles brochure.
  • Advertisements as published in 1920.

 Sources

  • 1920 Sales Brochure.
