1926 247cc Villers - All Chain Model

 1926 all chain

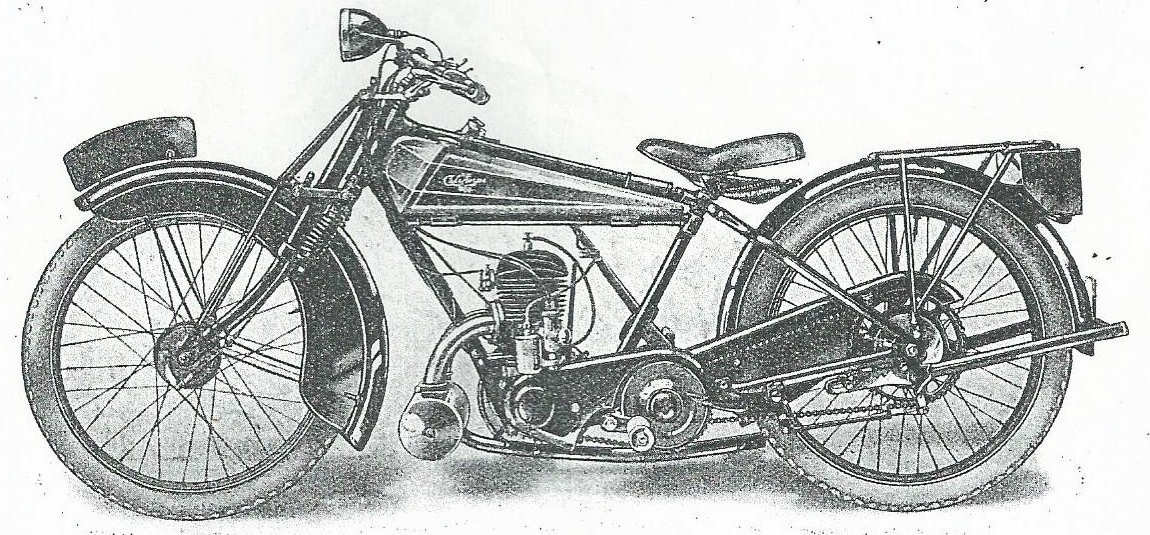

Appearance As picture



Specification

Engine - 2 ½ h.p. PECO 2-stroke, 67 mm. x 69 mm. bore and stroke, having a capacity of 245 c.c., roller bearing big end.

Lubrication - Best & Lloyd drip feed, through adjustable sight on tank.

Carburettor - B. & B..

Tank - 1½ gallons petrol, 1 ½ quarts oil, enamelled black, gold lined.

Ignition - Villiers Flywheel.

Gearbox - Burman 3-speed, 3-plate clutch and kick starter. All chain drive transmission with shock absorber in clutch.

Wheels and Tyres - 24 x 2¼ in. , with Dunlop Cord studded tyres.

Frame - Weldless steel tubing, patent girder spring forks.

Brakes - Internal expanding hub front and rear.

Standard Fittings - Large pan seat, inverted levers, tools, mudguards, stand and carrier.



Extras

Foot Boards and/or Touring Handlebars can be fitted to all models at additional cost.

Notes

Additional Information  - (Available to members in downloads section)

  • 1926 Sales Brochure.
  • Advertisements as published in 1926.
  • Motor Cycling, March 10th, 1926 - Road Test of the 350cc Super Sports Model.

Sources

  • 1926 Sales Brochure.
