1926 245cc Single Speed

 1926 single

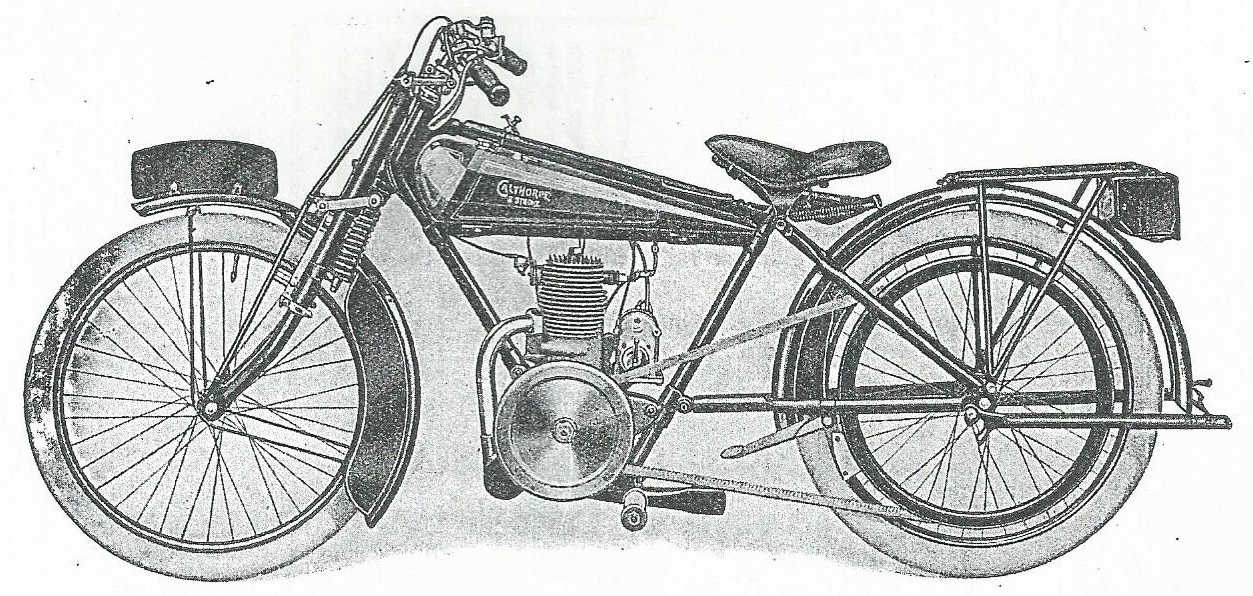

Appearance As picture



Specification

Engine - 2 ½ h.p. PECO 2-stroke, 67 mm. x 69 mm. bore and stroke, having a capacity of 245 c.c., roller bearing big end.

Carburettor - B. & B..

Lubrication- Best & Lloyd sight feed to clyinder wall.

Ignition - Magneto C.A.V. variable.

Transmission - ¾ belt.

Tank - 1 ½ gallons petrol, 1 ½ quarts oil, enamelled black, gold lined.

Wheels & Tyres - 24 x 2¼ in. Dunlop Cord studded tyres.

Frame - Weldless steel tubing, patent girder forks.

Brakes - Stirrup front, heel pedal rear.

Standard Fittings - Patent pan seat, stand, inverted levers, carrier and tools.



Extras

Foot Boards and/or Touring Handlebars can be fitted to all models at additional cost.

Notes

Additional Information  - (Available to members in downloads section)

  • 1926 Sales Brochure.
  • Advertisements as published in 1926.
  • Motor Cycling, March 10th, 1926 - Road Test of the 350cc Super Sports Model.

Sources

  • 1926 Sales Brochure.
