1926 350cc OHV Sports Model

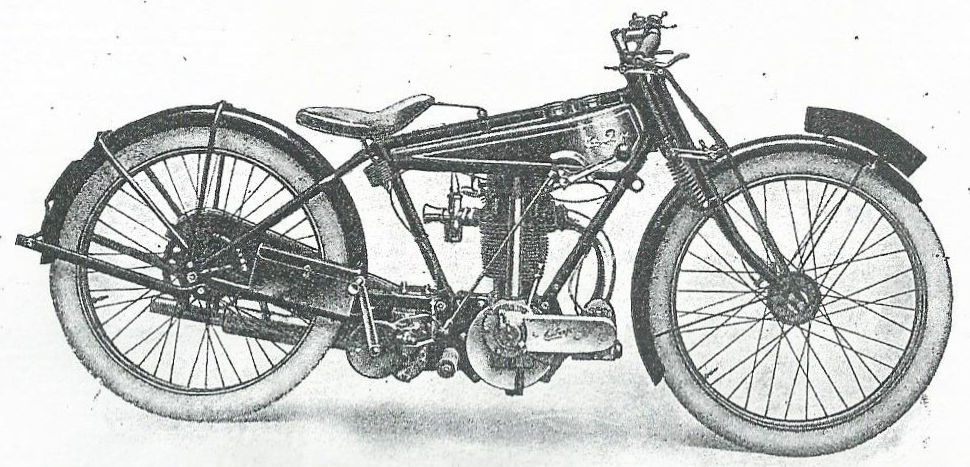

 1926 sports

Appearance As picture



Specification

Engine - 3 ½ h.p. 4-stroke OHV, 74mm. x 81mm. bore and stroke, having a capacity of 348c.c., enclosed rocker gear, roller big end and pulley side main bearing.

Lubrication - Mechanical oil pump on engine shaft, straight to engine under pressure.

Carburettor - B. & B., 2-lever.

Tank - 1¾ gallons petrol, 1½ quarts oil, enamelled black, gold lined.

Ignition - C.A.V. Magneto, variable.

Gearbox - Burman 3-speed, 3-plate clutch and kick starter. All chain drive transmission with shock absorber in clutch.

Wheels and Tyres - 26 x 2½ in. , with Dunlop Cord studded tyres.

Frame - Weldless steel tubing, patent girder spring forks.

Brakes - Internal expanding hub front and rear.

Standard Fittings - Large pan seat well sprung and slung on frame. Rear carrier and 6in. rear guard, or 4in. rear guard held on strong tubular stays.



Extras

6in. or 4in. rear mudguard.

With or without rear carrier.

Foot Boards and/or Touring Handlebars can be fitted to all models at additional cost.

Notes

Engine of Calthorpe design and manufucture.

Additional Information  - (Available to members in downloads section)

  • 1926 Sales Brochure.
  • Advertisements as published in 1926.
  • Motor Cycling, March 10th, 1926 - Road Test of the 350cc Super Sports Model.

Sources

  • 1926 Sales Brochure.
