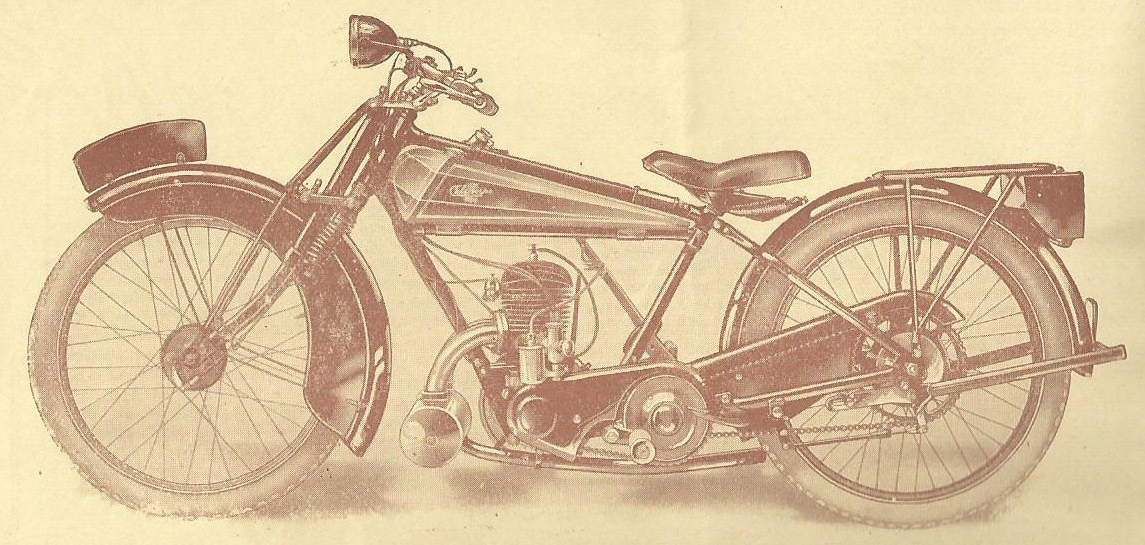

1927 247cc Villers - All Chain Model A.5.

 1927 all chain

Appearance As picture



Specification

Engine - 2 ½ h.p. Villiers improved Sports, 2-stroke, 67 mm. x 70 mm. bore and stroke, having a capacity of 247 c.c., aluminium piston and clyinder head.

Lubrication - Best & Lloyd drip feed, through adjustable sight on tank.

Carburettor - Villiers.

Tank - 1½ gallons petrol, 1 ½ quarts oil, enamelled black, gold lined.

Ignition - Villiers Flywheel.

Gearbox - Burman 3-speed, 2-plate clutch and kick starter. All chain drive transmission with shock absorber in clutch.

Wheels and Tyres - 24 x 2¼ in. , with Dunlop Cord studded tyres.

Frame - Weldless steel tubing, patent girder spring forks.

Brakes - Internal expanding hub front and rear.

Standard Fittings - Large pan seat, inverted levers, tools, mudguards, stand and carrier.



Extras

Available with or without lighting set.

Notes

Additional Information  - (Available to members in downloads section)

  • 1927 Sales Brochure.
  • Advertisements as published in 1927.
  • The Motor Cycle, July 21st, 1927 - Road Test of the 500cc OHC G1 Model.

Sources

  • 1927 Sales Brochure.
