1927 350cc OHV Super Sports Model D.6.S.

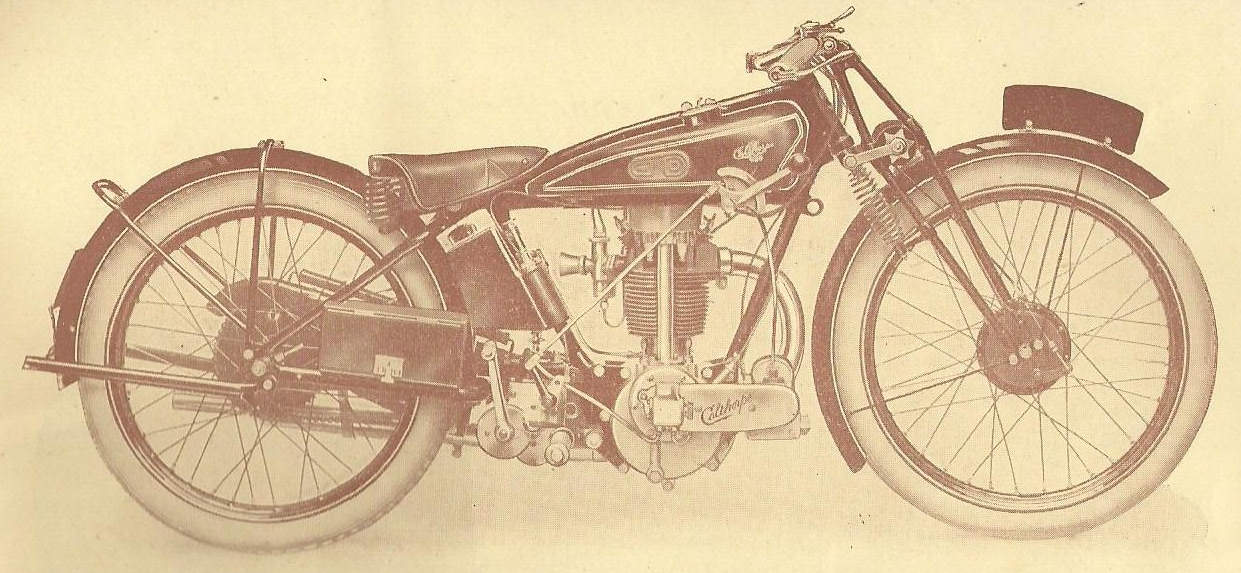

1927 supersports D6S

Appearance As picture



Specification

Engine - 3 ½ h.p. 4-stroke OHV, 71mm. x 81mm. bore and stroke, having a capacity of 348c.c., enclosed rocker gear, running on roller bearings and automatically lubricated from timing case. Double row roller big end and main bearing.

Lubrication - Sight feed mechanical mechanical pump on engine shaft, the oil being pressure feed direct to big end.

Carburettor - AMAC T.T Type.

Tank - 2¼ gallons petrol only, fitted with large quick release filler, enamelled lustre black and lined panel gold, separate oil tank on saddle tube, ½ gallon capacity with auxiliary hand pump incorporated.

Ignition - B.T.H Variable Magneto.

Gearbox - Burman 3-speed, heavy plate clutch and kick starter. Heavy roller chain back and front.

Wheels and Tyres - 27 x 2⅜in. Dunlop Sports Cord Tyres.

Frame - Weldless steel tubing, heavy type spring girder (round tube) forks.

Brakes - 6in. diameter large internal expanding hub front and rear.

Standard Fittings - Patent spring seat, strong steel mudguards with stays, welded steel pannier bag, knee gribs fitted to tank, large plated exhust pipe and silencer.



Extras

Rear carrier and extra tool bag.

Available with choice of 3 side cars fitted (click links below to view):

Sports Aluminum Side Car, painted or frosted.

Super Sports Frosted Aluminium Octagonal Side Car, fitted with screen, rear locker and apron.

Super Sports Polished Aluminium Side Car, fitted with upholstred bucket seat, windscreen and separate rear locker.

Notes

Additional Information  - (Available to members in downloads section)

  • 1927 Sales Brochure.
  • Advertisements as published in 1927.
  • The Motor Cycle, July 21st, 1927 - Road Test of the 500cc OHC G1 Model.

Sources

  • 1927 Sales Brochure.
