1932 250cc Ivory Minor

1932 250cc

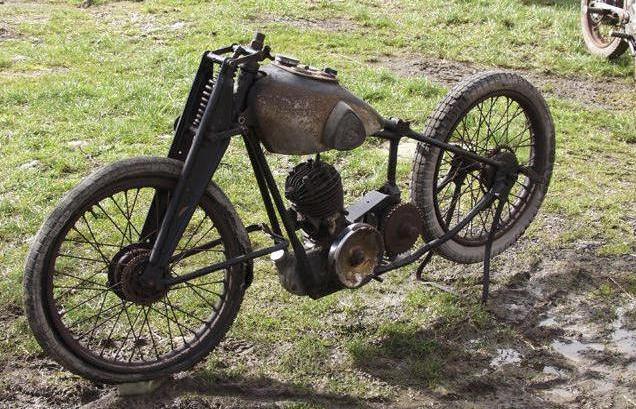

Appearance As picture

Click here for photo gallery



Specification

Engine - Two-port two stroke design, 67mm bore x 70mm stroke having a capacity of 248 c.c. made under Villiers' Patent.

Carburettor - Two-lever type.

Petrol Tank - 2 1/4 gallons capacity. Enamelled and lined. Inserted rectangular instrument panel.

Front Forks - Pressed steel design.

Transmission - Chain to primary drive, front entirely covered with chain cover..

Gearbox - Burman 3-speed with hand control clutch, hand change and fitted with kick starter.

Wheels - 5 inch internally expanding brakes.

Tyres - 26in. x 3in. 4-ply cord.

Electrics - Fitted standard with Miller coil ignition and separate dynamo, 7in. headlamp.

Front and rear stands.



Finished in Calthorpe Ivory or ebony black at option, and lined to suit the colour.



Extras



Notes Only made for one year.



Additional Information  - (Available to members in downloads section)

  • 1932 350cc Ivory sales brochure.
  • 1932 Ivory Calthorpe sales brochure (all models).
  • Estimate production and known surviving machine figures.

Sources

  •  1932 Ivory Calthorpe sales brochures.
