1938 250cc 2-Port De Luxe

1938 250

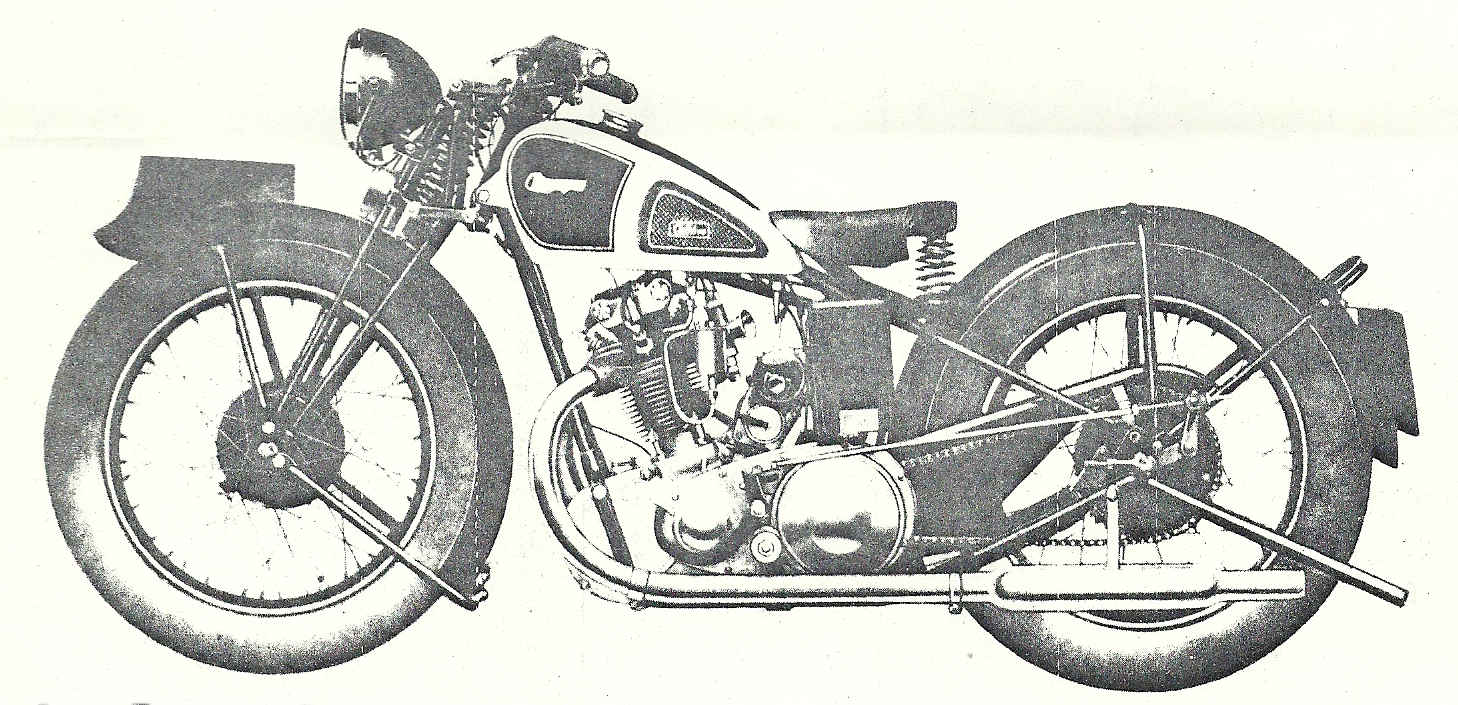

Appearance As picture

Specification

Engine - Two-port OHV design, 67mm bore x 70mm stroke having a capacity of 247 c.c. Aluminium piston.

Carburettor - Amal T.T type with down draught, twist grip control and separate air levers on Amal 'clean bar' type handlebar.

Magneto - Miller combined magneto / dynamo driven by ground gears. (6V Miller coil ignition at option)

Petrol Tank - 2 3/4 gallons capacity. Enamelled and lined with rectangular instrument panel fitted on the top.

Forks - Girder type.

Transmission - Chain to primary drive, enclosed in an oilbath gearcase with oil feed to primary and dynamo chains.

Gearbox - Burman four-speed, foot change is standard.

Wheels - 6inch internally expanding brakes.

Tyres - 26in. x 3.25in..

Electrics - Miller 6v coil ignition or combined Miller dynamo and magneto as required, horn, 8 inch Miller headlight.

Front and rear stands, Terry de luxe pattern saddle, all bright parts chromium-plated.

Finished in Red or Green and chrome.

Extras

Trip or Non-Trip Speedomater built into front wheel and mounted on front forks.
